HYDRAULIC HOSE - SAE 100R17 - SMOOTH COVER

Name: HYDRAULIC HOSE - SAE 100R17 - SMOOTH COVER
Brand: Hose Network
SKU: HH-R17
Availability: InStock

Applicable Standard - SAE 100R17;

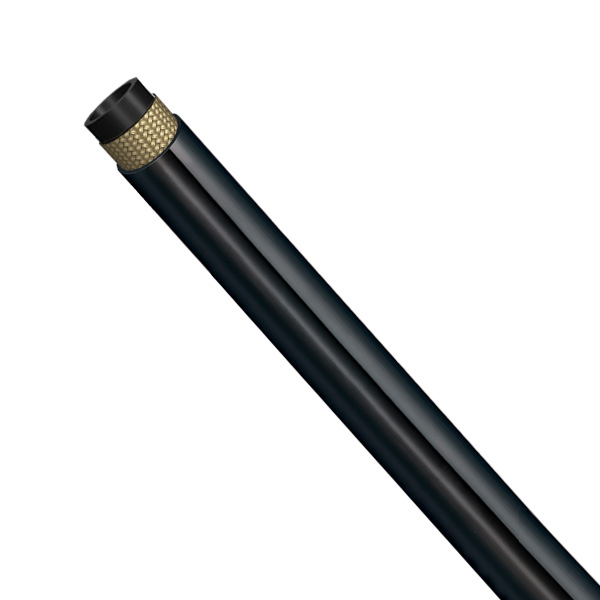

Designed for medium-pressure hydraulic applications requiring a tight bend radius, this hose features a black synthetic rubber inner tube resistant to oil and water. It is reinforced with one high-tensile steel wire braid (two wire braids for 5/8", 3/4", and 1" sizes) for added strength. The durable black synthetic rubber cover provides excellent resistance to weather and oil. Suitable for…

Price range: $6.28 through $23.41 per metre SKU: HH-R17

HYDRAULIC HOSE - SAE 100R17 - SMOOTH COVER

SKU

Size

Per Metre

Length (metres)

Inner Tube	Black synthetic rubber resistant to water & oil
Reinforcement	One high-tensile steel wire braid (two wire braids for 5/8", 3/4", and 1" sizes)
Cover	Black synthetic rubber resistant to abrasion and weather, oil & ozone
Application	Medium pressure hydraulic applications where tight bend radius' are required
Temperature Range	Continuous: -40°C to +100°C - Intermittent : +120°C
Impulse Cycles	200,000

Item Code	Dash	DN	Inner Diameter		Outer Diameter		Working Pressure		Burst Pressure		Bend Radius		Weight
Item Code	Dash	DN	inch	mm	inch	mm	psi	bar	psi	bar	inch	mm	Weight	kg/m
HH-R17-04	-04	06	1/4	6.6	0.50	12.8	3045	210	12180	840	2.0	50	0.218
HH-R17-05	-05	08	5/16	8.1	0.56	14.3	3045	210	12180	840	2.2	55	0.253
HH-R17-06	-06	10	3/8	9.7	0.64	16.3	3045	210	12180	840	2.6	65	0.303
HH-R17-08	-08	12	1/2	12.9	0.80	20.3	3045	210	12180	840	3.5	90	0.446
HH-R17-10	-10	16	5/8	16.1	0.93	23.5	3045	210	12180	840	3.9	100	0.736
HH-R17-12	-12	19	3/4	19.2	1.10	28.0	3045	210	12180	840	4.7	120	0.932
HH-R17-16	-16	25	1	25.7	1.48	37.5	3045	210	12180	840	5.9	150	1.614

Meets or exceeds the performance requirements of SAE 100R17
MSHA IC -256/09
Complies with Flame Resistant and Electrical Resistance (Anti-Static) requirements of Australian Standard AS 2660 and methods of test AS 1180.10B and 13A
