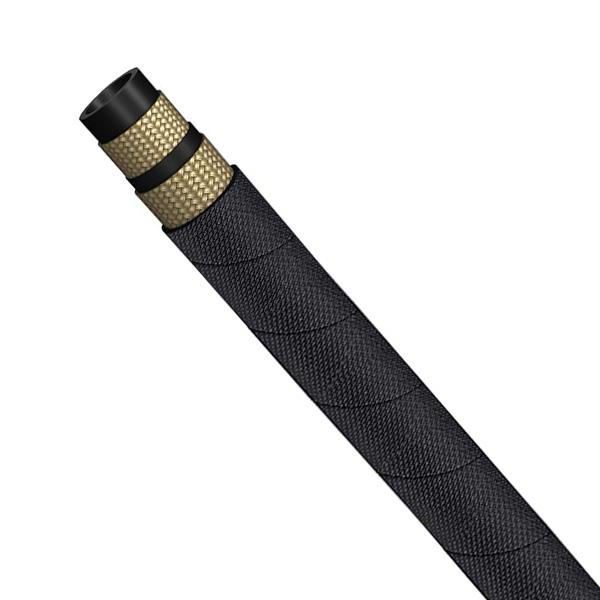

HYDRAULIC HOSE - JACK HOSE
Specifically designed for hydraulic jacking systems, this hose handles static pressures up to 10,000 PSI. It features a black synthetic rubber inner tube resistant to oil and water, reinforced with double wire braids for maximum strength. The black synthetic rubber cover provides excellent resistance to abrasion, weather, oil, and ozone. Suitable for use with petroleum and water-based fluids.
SKU
Size
Per Metre
Length (metres)
| Inner Tube | Black synthetic rubber resistant to oil & water |
|---|---|
| Reinforcement | Two braids of high-tensile steel wire |
| Cover | Black synthetic rubber resistant to abrasion and weather, oil & ozone |
| Application | Hydraulic jacking system with petroleum and water based fluids. 10,000 PSI Static Pressure Only |
| Temperature Range | Continuous: -40°C to +100°C |
| Item Code | Dash | DN | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Bend Radius | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| HH-HJ-04 | -04 | 06 | 1/4 | 6.4 | 0.52 | 13.2 | 10000 | 700 | 20000 | 1400 | 2.0 | 50 | 0.323 |
| HH-HJ-06 | -06 | 10 | 3/8 | 9.5 | 0.69 | 17.4 | 10000 | 700 | 20000 | 1400 | 2.8 | 70 | 0.472 |
- Meets Flame Resistance MSHA Designation
- 10,000 PSI Static pressure only
