HYDRAULIC HOSE - SAE 100R8 - EN855 R8

Name: HYDRAULIC HOSE - SAE 100R8 - EN855 R8
Brand: Hose Network
SKU: HH-R8
Availability: InStock

Applicable Standard - SAE 100R8; ISO 3949

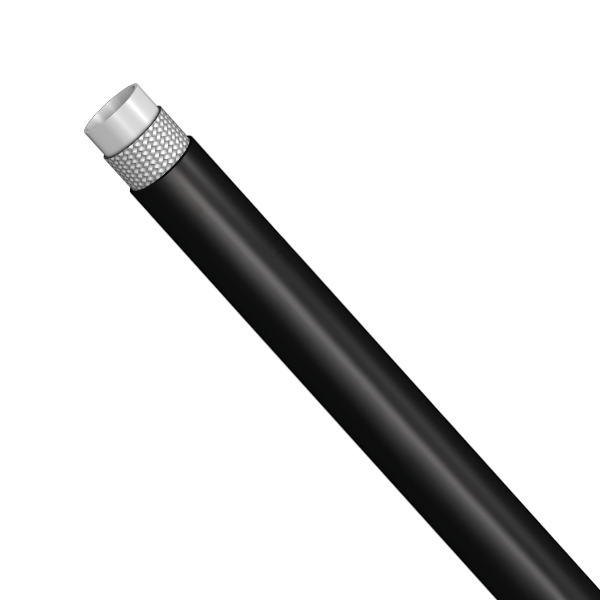

Designed for high-pressure hydraulic lines, this lightweight and compact hose offers minimal length variation under pressure. Featuring a thermoplastic elastomer inner tube and synthetic fiber braid reinforcement, it provides excellent durability and strength. The black polyurethane cover, perforated for safety, ensures high resistance to abrasion. Ideal for agricultural machinery, earthmoving, mobile equipment, lube lines, blowout preventers, hydraulic lifts and construction…

Price range: $10.46 through $47.19 per metre SKU: HH-R8

SKU

Size

Per Metre

Length (metres)

Inner Tube	Thermoplastic Elastomer
Reinforcement	Single Braid of Synthetic Fiber
Cover	Black polyurethane, perforated
Application	High pressure thermoplastic hose with a perforated cover. Compatible with petroleum, water and synthetic based fluids for mobile equipment, lube lines, blowout preventers, hydraulic lifts and construction machinery.
Temperature Range	Continuous: -40°C to +100°C - Max temperature for water based and fire resistance fluids is 70°C

Item Code	Dash	DN	Inner Diameter		Outer Diameter		Working Pressure		Burst Pressure		Bend Radius		Weight
Item Code	Dash	DN	inch	mm	inch	mm	psi	bar	psi	bar	inch	mm	Weight	kg/m
HH-R8-03	-03	05	3/16	4.8	0.405	10.3	5000	350	20000	1400	1.0	25	0.087
HH-R8-04	-04	06	1/4	6.4	0.490	12.4	5000	350	20000	1400	1.3	32	0.118
HH-R8-05	-05	08	5/16	8.0	0.560	14.2	4350	300	17400	1200	1.8	45	0.147
HH-R8-06	-06	10	3/8	9.5	0.620	15.7	4000	280	16000	1120	2.2	55	0.170
HH-R8-08	-08	12	1/2	12.7	0.760	19.3	3500	245	14000	980	3.0	77	0.219
HH-R8-12	-12	20	3/4	19.0	1.040	26.4	2300	165	9200	660	5.5	140	0.372
HH-R8-16	-16	25	1	25.4	1.310	33.3	2000	140	8000	560	8.0	200	0.511
