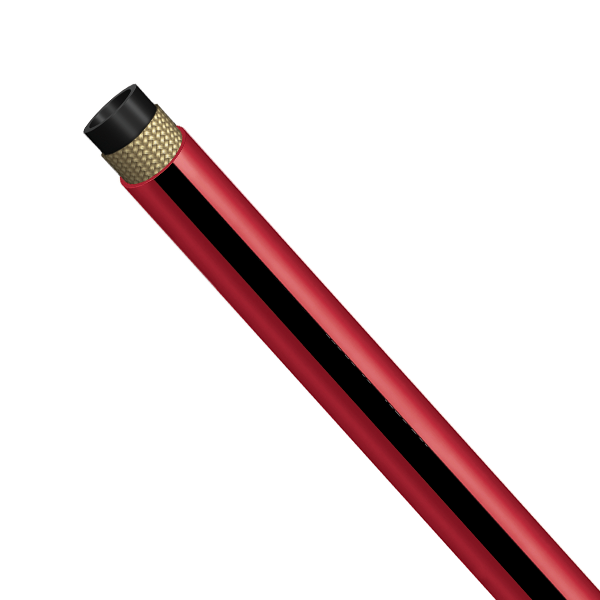

HYDRAULIC HOSE - SAE 100 R1AT - SMOOTH COVER FIRE SUPPRESSION
Applicable Standard — SAE 100 R1AT;
Designed medium pressure hydraulic applications including fire suppression actuation equipment where the red cover allows for easy identification. This durable hose features a black nitrile inner tube resistant to oil and water, reinforced with a single steel wire braid. Its red nitrile cover offers excellent resistance to weather, oil, and flames, ensuring reliability in demanding environments.
SKU
Size
Per Metre
Length (metres)
| Inner Tube | Black nitrile resistant to oil and water |
|---|---|
| Reinforcement | Single steel wire braid |
| Cover | Red nitrile resistant to oil,weather & flame resistance |
| Application | Medium pressure hydraulic applications including fire suppression actuation equipment where the red cover allows for easy identification. |
| Temperature Range | Continuous: -40°C to +100°C, Intermittent: +120°C |
| Item Code | Dash | DN | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Bend Radius | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| HH-FS-03 | -03 | 3/16 | 11.9 | 3630 | 14520 | 89 | 0.18 | ||||||
| HH-FS-04 | -04 | 6 | |||||||||||
| HH-FS-06 | -06 | 10 | |||||||||||
| HH-FS-08 | -08 | 12 | |||||||||||
| HH-FS-12 | -12 | 19 | |||||||||||
| HH-FS-16 | -16 | 25 | |||||||||||
- Meets Flame Resistance USMSHA Designation
