HYDRAULIC HOSE - 5K ULTRA TUFF CONSTANT PRESSURE - MSHA FRAS

Name: HYDRAULIC HOSE - 5K ULTRA TUFF CONSTANT PRESSURE - MSHA FRAS
Brand: Hose Network
SKU: HH-UT5
Availability: InStock

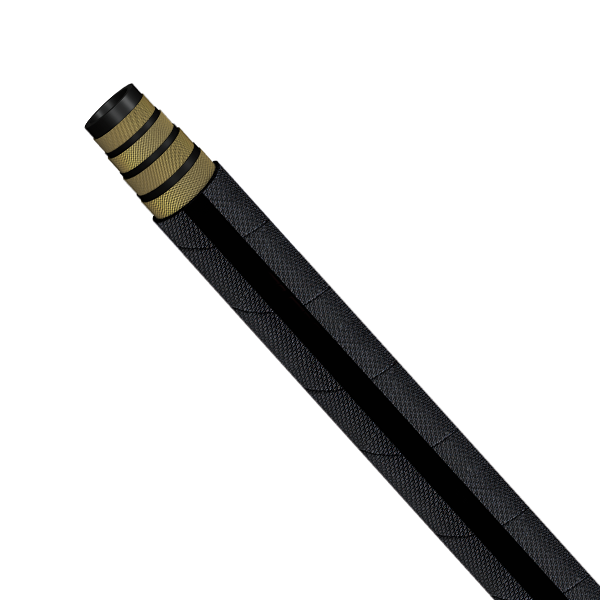

This heavy-duty, high-pressure hose is designed for hydraulic lines in earthmoving, material handling equipment, and machinery. It features a black synthetic rubber inner tube resistant to oil and water, reinforced with four alternating layers of spiralled high-tensile steel wire (six layers for sizes 1-1/2" to 2"). The Ultra Tuff black synthetic rubber cover offers extreme resistance to abrasion, weather, oil,…

Price range: $18.67 through $115.95 per metre SKU: HH-UT5

HYDRAULIC HOSE - 5K ULTRA TUFF CONSTANT PRESSURE - MSHA FRAS

SKU

Size

Per Metre

Length (metres)

Inner Tube	Black synthetic rubber resistant to water & oil
Reinforcement	Four alternating layers of spiralled high-tensile steel wire, (sizes 1-1-/2" to 2" six alternating layers of spiralled high-tensile steel wire.)
Cover	Black ultra tuff synthetic rubber resistant to extreme abrasion, weather, oil & ozone.
Application	Heavy duty, high pressure hydraulic lines for use with petroleum or water based fluids. Suitable for earthmoving, material handling equipment and machinery
Temperature Range	-40°C to 100°C

Item Code	Dash	DN	Inner Diameter		Outer Diameter		Working Pressure		Burst Pressure		Bend Radius		Weight
Item Code	Dash	DN	inch	mm	inch	mm	psi	bar	psi	bar	inch	mm	Weight	kg/m
HH-UT5-06	-06	10	3/8	9.8	0.84	21.4	5000	350	20000	1400	3.5	90	0.822
HH-UT5-08	-08	12	1/2	13.1	0.82	24.6	5000	350	20000	1400	4.5	115	0.994
HH-UT5-10	-10	16	5/8	16.2	1.06	27.0	5000	350	20000	1400	4.7	120	1.258
HH-UT5-12	-12	19	3/4	19.3	0.82	32.1	5000	350	20000	1400	9.4	240	1.814
HH-UT5-16	-16	25	1	25.9	1.52	38.7	5000	350	20000	1400	11.8	300	2.277
HH-UT5-20	-20	31	1-1/4	32.2	1.75	44.5	5000	350	20000	1400	18.1	460	2.671
HH-UT5-24	-24	38	1-1/2	38.7	2.26	57.3	5000	350	20000	1400	19.7	500	5.747
HH-UT5-32	-32	51	2	51.3	0.82	71.1	5000	350	20000	1400	24.8	630	7.852

Constant pressure range
EN856 4SP (size -06 to -08)
Complies with Flame Resistant and Electrical Resistance (Anti Static) requirements of Australian Standard AS 2660 and methods of test AS 1180.10B and 13A
EN856 4SH (size -20)
SAE100R13 (size -10, -12,-16,-24, -32)
ISO 18752
