HYDRAULIC HOSE - SAE 100R16 - EN 857 2SC - HIGH TEMP

Name: HYDRAULIC HOSE - SAE 100R16 - EN 857 2SC - HIGH TEMP
Brand: Hose Network
SKU: HH-HR16
Availability: InStock

Applicable Standard - SAE100R16; EN 857 2SC;

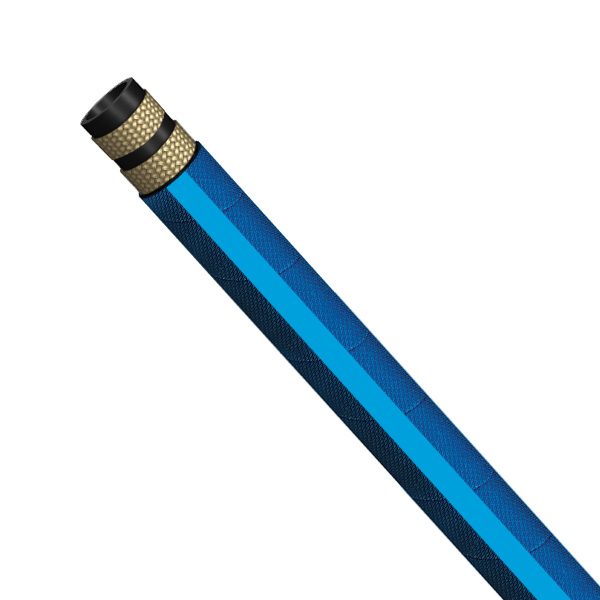

Engineered for high-pressure hydraulic lines (165 to 400 bar), this compact and flexible hose is ideal for agricultural, earthmoving, and material handling equipment. It features a black synthetic rubber inner tube resistant to oil and water, reinforced with double steel wire braids for durability. The blue synthetic rubber cover provides excellent resistance to abrasion, weather, oil, and ozone. Designed to…

Price range: $6.29 through $21.10 per metre SKU: HH-HR16

HYDRAULIC HOSE - SAE 100R16 - EN 857 2SC - HIGH TEMP

SKU

Size

Per Metre

Length (metres)

Inner Tube	Black synthetic rubber resistant to oil and water
Reinforcement	Double steel wire braids
Cover	Blue synthetic rubber resistant to abrasion and weather, oil & ozone.
Application	High Pressure Hydraulic Lines requiring compact outer diameter and high flexibility for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural, Earthmoving & Material handling equipment and machineries/systems
Temperature Range	Temperature Range : -40°C to +150°C
Impulse Cycles	200,000; Tested up to 400,000 cycles, up to 1" I.D

Item Code	Dash	DN	Inner Diameter		Outer Diameter		Working Pressure		Burst Pressure		Bend Radius		Weight
Item Code	Dash	DN	inch	mm	inch	mm	psi	bar	psi	bar	inch	mm	Weight	kg/m
HH-HR16-04	-04	06	1/4	6.7	0.52	13.2	5800	400	23200	1600	2.0	50	0.323
HH-HR16-06	-06	10	3/8	9.8	0.67	17.1	4785	330	19140	1320	2.6	65	0.466
HH-HR16-08	-08	12	1/2	13.1	0.80	20.4	3990	275	15950	1100	3.5	90	0.624
HH-HR16-10	-10	16	5/8	16.3	0.93	23.5	3625	250	14500	1000	3.9	100	0.736
HH-HR16-12	-12	19	3/4	19.3	1.10	28	3120	215	12470	860	4.7	120	0.932
HH-HR16-16	-16	25	1	25.9	1.41	35.7	2395	165	9570	660	5.9	150	1.324
